Cardone

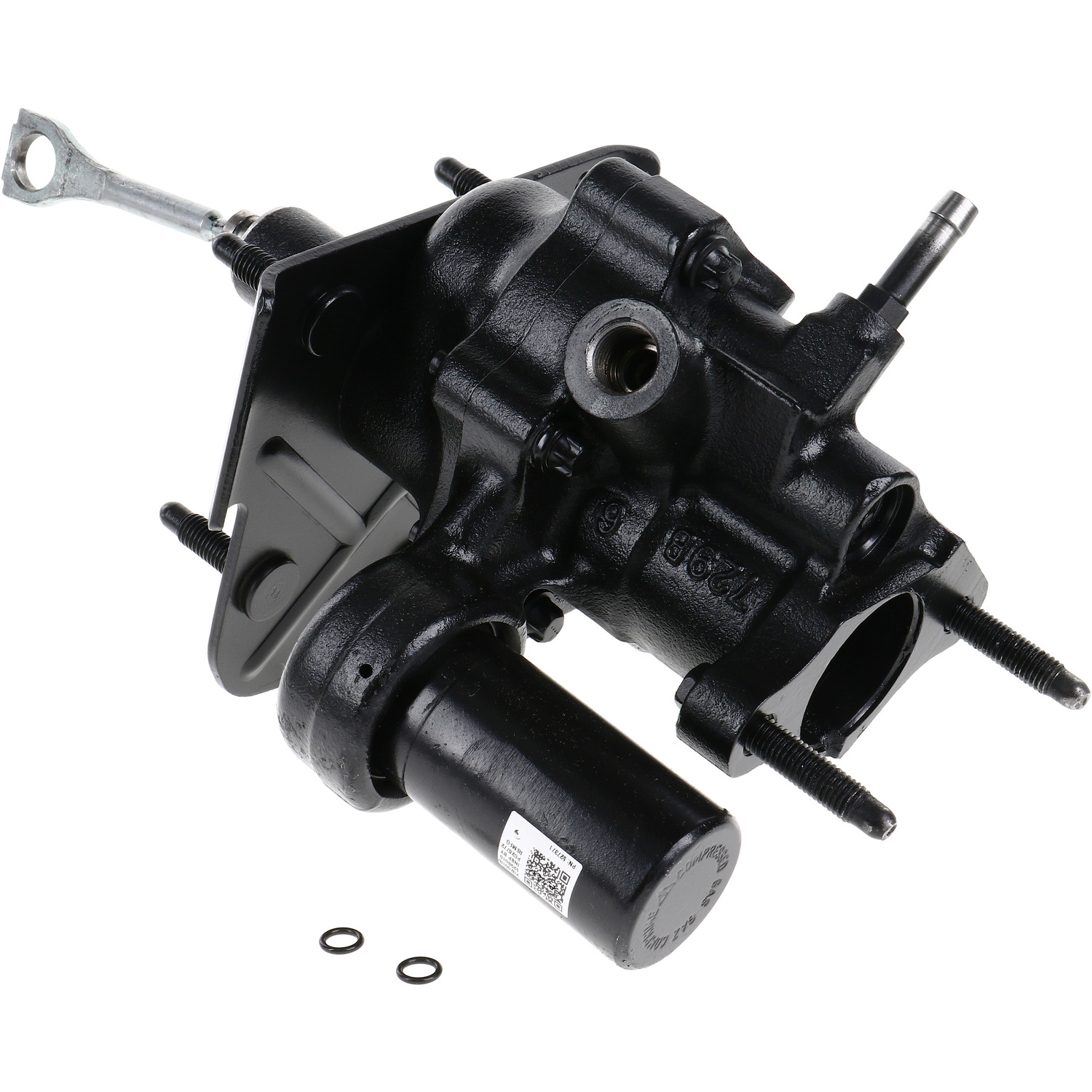

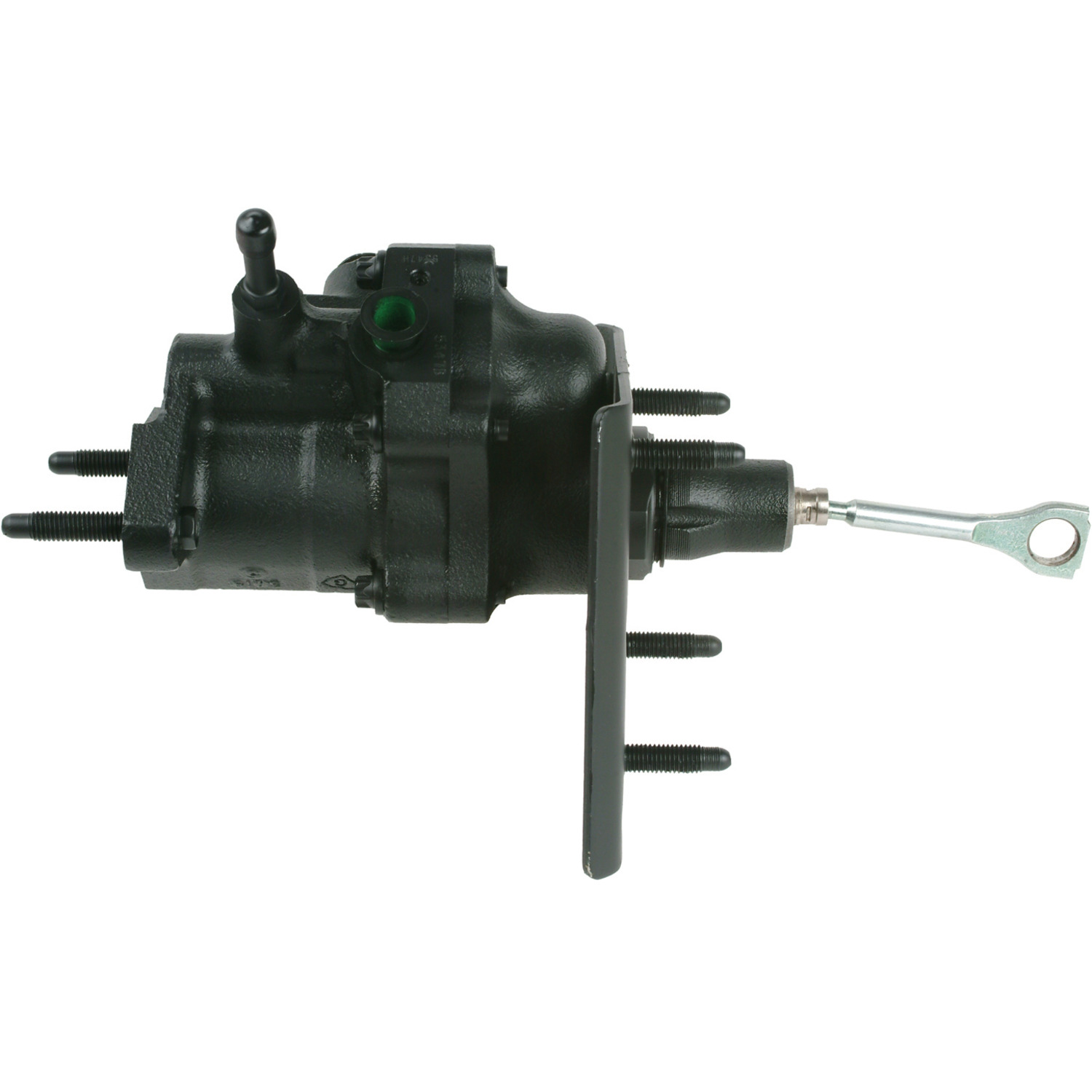

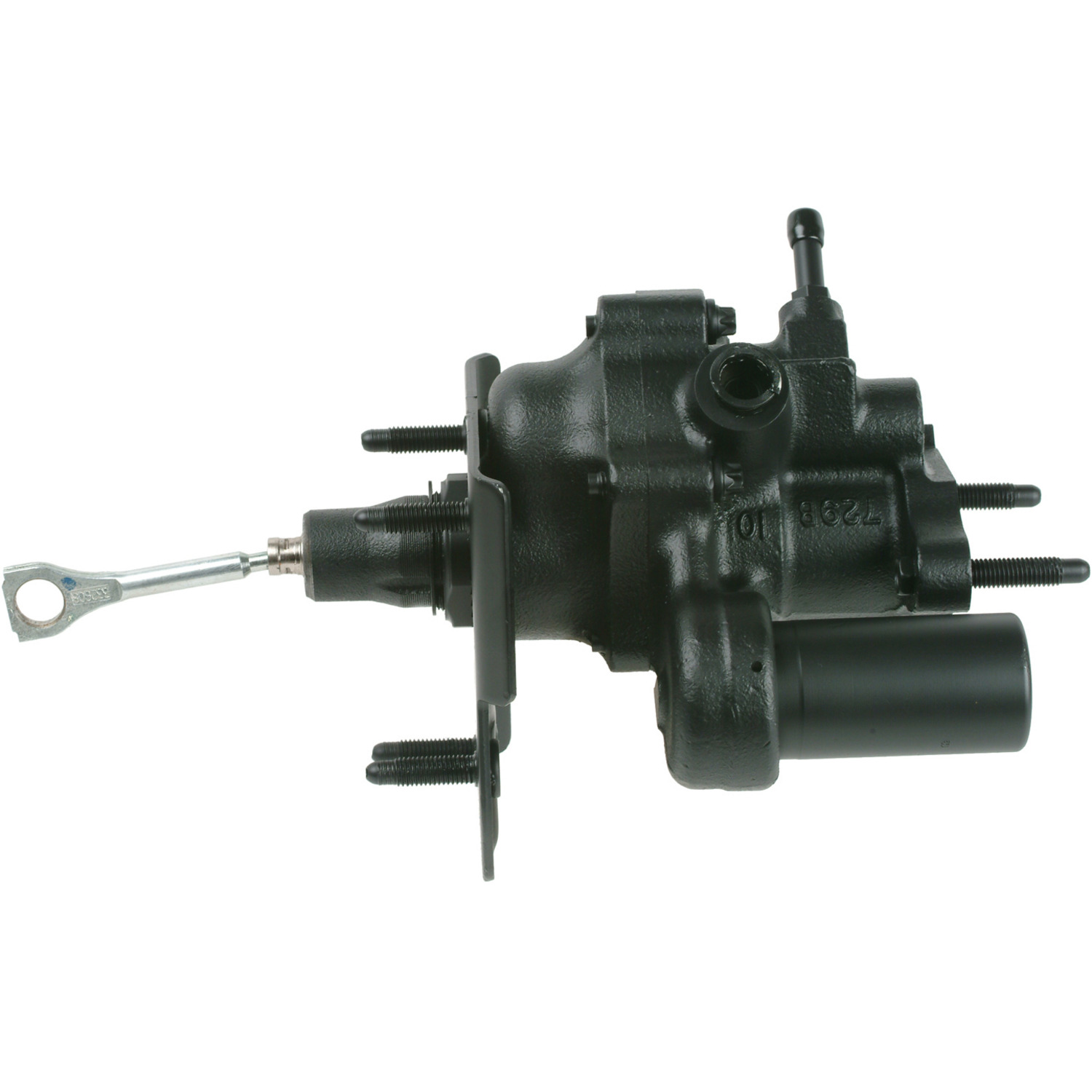

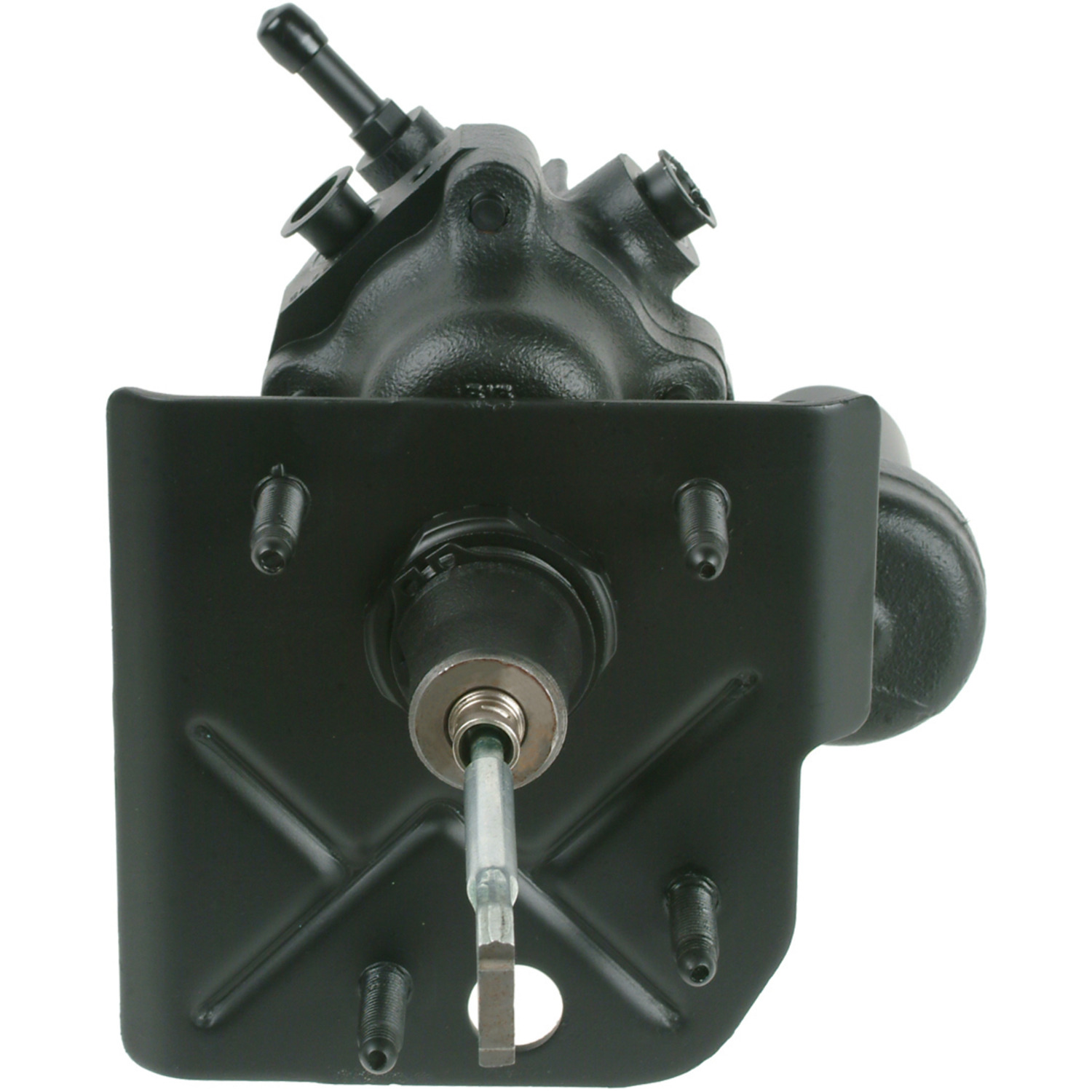

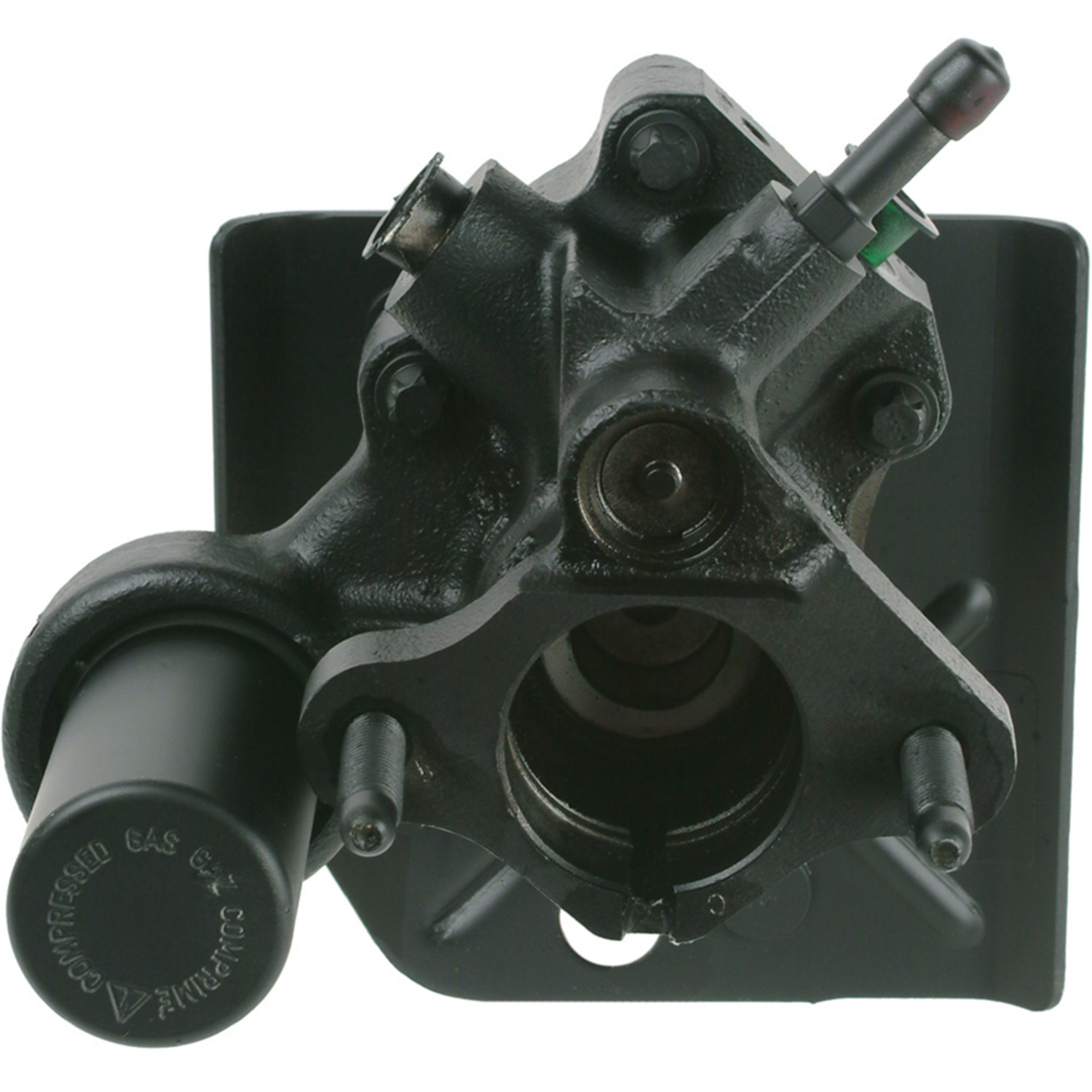

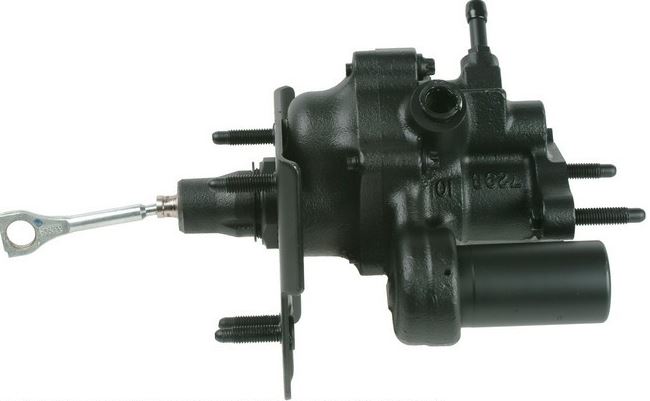

Bromsservo

Cardone : 527371

Artikelnr: CDO527371
CHEV/GMC TRK 07-03
  • Booster Type: Hydraulic
  • Brake Pedal Rod Extension Included: No
  • Brake Service Grade: Regular
  • Contains Electronic Components: No
  • Does it require SDS: No
  • E-Waste: No
  • FAA_A1: Hydraulic boosters are most commonly used on heavy duty pickup trucks and industrial applications. However, hydraulic boosters can be found on passenger vehicles as well.
  • FAA_A2: As part of the power steering system, hydraulic boosters require O.E. power steering fluid.
  • FAA_A3: Yes, the master cylinder pushrod, spring and retainer will need to be retained and reused on the replacement hydraulic booster.
  • FAA_A4: The hydraulic booster is designed to operate within the pressure range of the power steering system. In most cases this is at least 1200 PSI (deadhead pressure).
  • FAA_A5: Yes, since the power steering lines have been removed, the system has been subjected to air. The power steering system will need to be bled using the O.E. bleeding procedure.
  • FAA_A6: Most hydraulic boosters are equipped with a pedal rod identification number. These numbers are stamped on the end of the pedal rod near the eyelet. The pedal rod identification number is one of the most accurate ways to choose the correct replacement hydraulic booster.
  • FAA_A7: A hydraulic booster can be tested just like a vacuum booster. With the engine off, pump the brake pedal until you feel firm resistance, then hold. Start the engine. Proper operation should result in the brake pedal slightly sinking.
  • FAA_A8: Yes, the hydraulic booster should be flushed along with the power steering system. This should be done in accordance with the O.E. maintanence intervals.
  • FAA_A9: This is possible, but not recommended. Altering or modifying a brake system puts the vehicle at higher risk of brake failure.
  • FAQ_Q1: What types of vehicles are hydraulic boosters used on?
  • FAQ_Q2: What type of fluid does a hydraulic booster require?
  • FAQ_Q3: Will I need to retain my master cylinder pushrod?
  • FAQ_Q4: How much PSI of power steering pressure should a hydraulic booster have?
  • FAQ_Q5: Will I need to bleed my power steering system after installation?
  • FAQ_Q6: What is the best way to identify a hydraulic booster?
  • FAQ_Q7: How can I test my hydraulic booster?
  • FAQ_Q8: Does my hydraulic booster require flushing?
  • FAQ_Q9: Can I convert my vehicle to a hydraulic boost system?
  • Gasket Or Seal Included: Yes
  • Housing Diameter: 2.158 IN
  • Housing Diameter: 54.81 MM
  • Housing Material: Cast Iron
  • Is Item A Chemical: No
  • Is Or Contains A Battery: No
  • Is Or Contains A Bulb: No
  • Is Prop Sixty Five Affected: No
  • Is the item CARB affected: No
  • Master Cylinder Included: No
  • Master Cylinder Stud Thread Size: 10x1.5
  • Mounting Bracket Included: Yes
  • Mounting Hardware Included: No
  • Neck Seal Included: No
  • Package Contents: Hydro Boost; Instruction Sheet; Sealing Kit
  • Product Condition: Remanufactured
  • Stud Thread Size: 10x1.25
  • 15126867: Chevrolet
  • 15126867: General Motors
  • 15167550: Chevrolet
  • 15183760: Chevrolet
  • 15183760: General Motors
  • 15212480: Chevrolet
  • 15212480: General Motors
  • 15814411: Chevrolet
  • 15814411: General Motors
  • 15854059: Chevrolet
  • 15854059: General Motors
