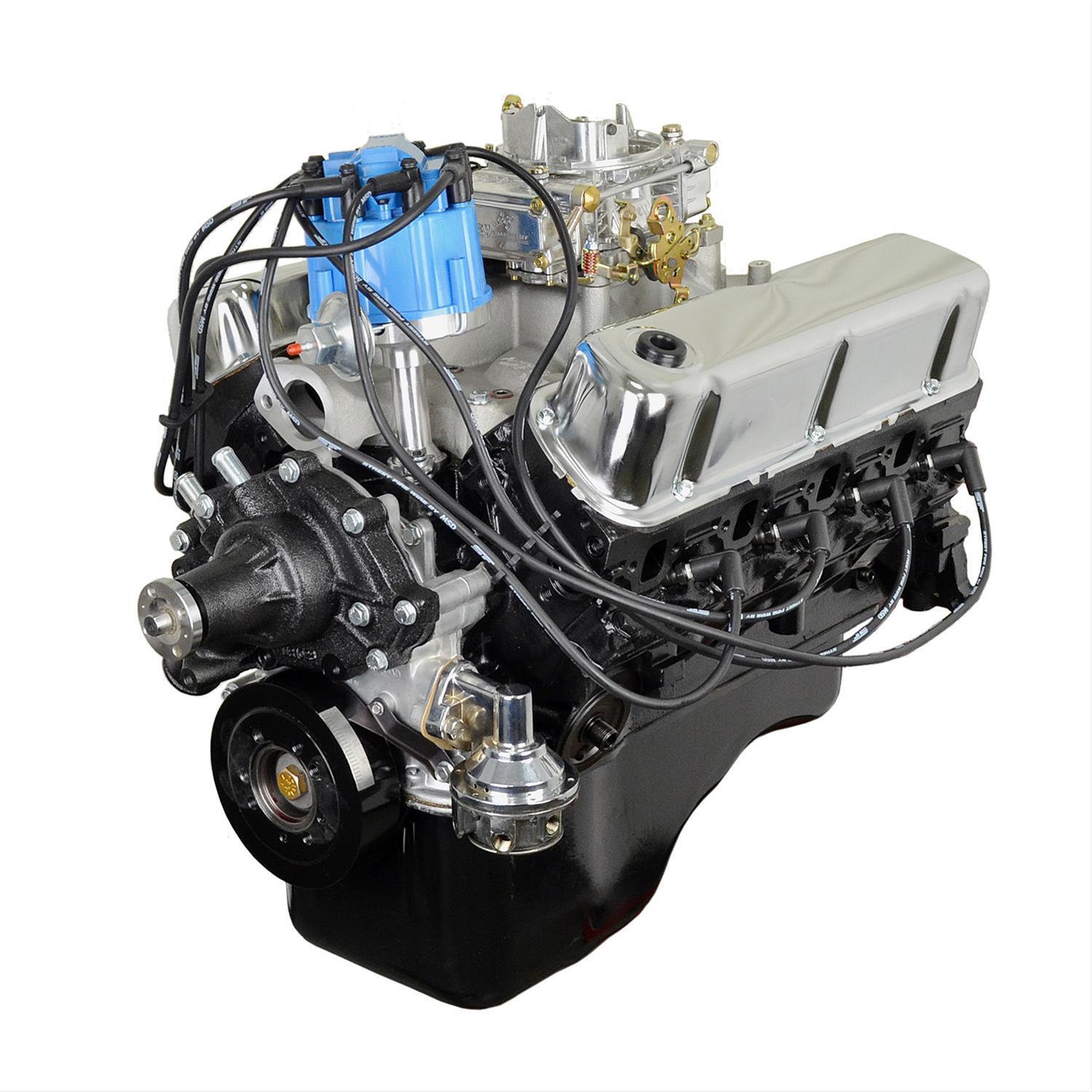

Ford SB 302ci crate motor
ATK High Performance Engines : HPE-HP99F
Artikelnr: ATKHP99F
Engine Specifications:

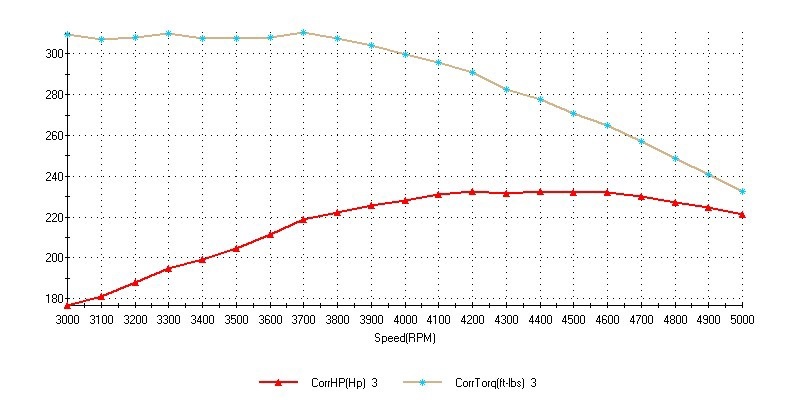

HP: 230
TQ: 325
Block: Seasoned OE non roller block
Bore/Stroke: up to 4.060 x 3.000
Displacement: 302CI
Crankshaft: OE 1 piece seal external balance 50oz
Rods: OE powder metal
Pistons: Cast aluminum 8.6:1 compression
Rings: Moly
Camshaft: Hyd. flat tappet
Cam Specs: 192/183 @ 50 .380/.395 111LSA
Timing Chain: Double roller
Cylinder Heads: OE E5TE/E7TE 62cc 1.77/1.46
Rocker Arms: Stamped steel 1.6 pedestal mount rockers
Oil Pan: Front Sump
Oil Pump: Melling standard volume
Balancer: External balance 50oz
Flexplate/Flywheel: External balance 50oz 164 tooth
Intake Manifold: ATK dual plane intake
Distributor: HEI (Iron gear) (may not clear OE air cleaners/monte carlo bar)
Water Pump: Early RH inlet standard rotation
Carburetor: Holley 600cfm electric choke / vacuum secondaries
Fuel Pump: Mechanical
Spark Plugs: Autolite #24
Spark Plug Wires: 8mm
Engine Info:
Oil: Conventional / Non Synthetic 10W30 with Comp Cam zinc additive #159 for first 3000 miles
Oil Filter: Wix or K&N
Timing: 32-34 Degrees with vacuum port plugged on carburetor
Spark Plug Gap: .035
Firing Order: 15426378
Octane: 91+
Stall Converter: Stock
Exhaust: 1 5/8 Headers
Notes: This engine does not have a manual transmission boss for the clutch. Must use Z-bar pivot bracket
Disclaimer: The parts listed are ATKs recommendations of parts to be used to obtain our power figures listed. Power figures can
vary based on parts used by the end user. It is the customers responsibility to verify components will work for their application.
Some modifications to the vehicle may be required using these and other aftermarket parts. ATK reserves the right to substitute
parts used in engines if necessary.
- Fabrikat: Ford
- hk: 220 - 240 hk
- CID: 302 CID
