Insug
Aeroflow : AF6050-6000
Artikelnr: afw6050-6000

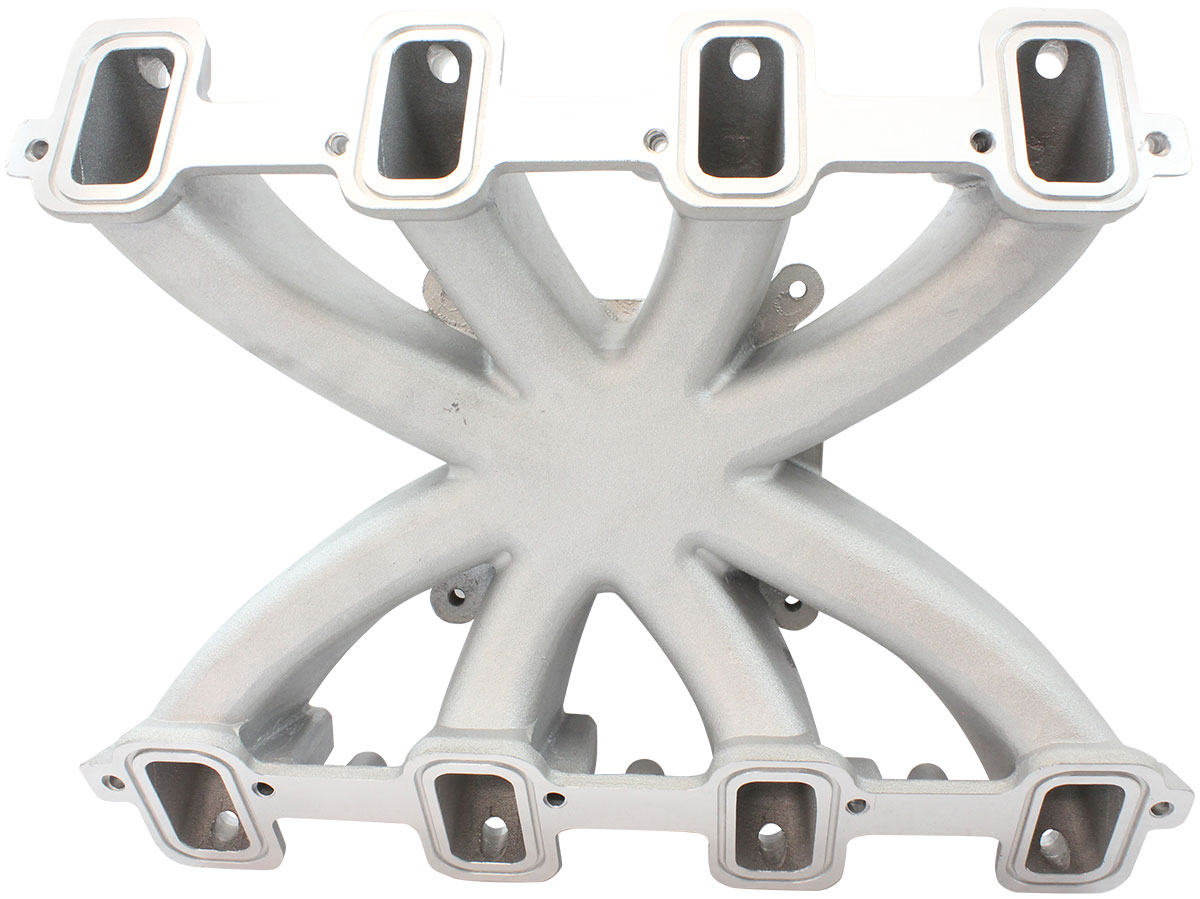

Fits GM LS3 Rectangle Port Engines.
EFI Applications.
This is designed for GM LS Engines with EFI only. Use AF6040-6000 for NON-EFI applications.
This intake manifold does not work with factory OEM fuel rails and requires the use of Aeroflow Fuel Rail Kit included (AF6999-6000).
Requires the use of either 14mm short (33.60mm) fuel injectors or 3/4" length (48.65mm) fuel injectors (Sold Separately).
Fits GM LS3 Engines.
Single Plane Configuration.
Low Rise Intake Manifold.
RPM operating range - 2500 to 7000.
Natural Cast Finish.
Manifold Specifications

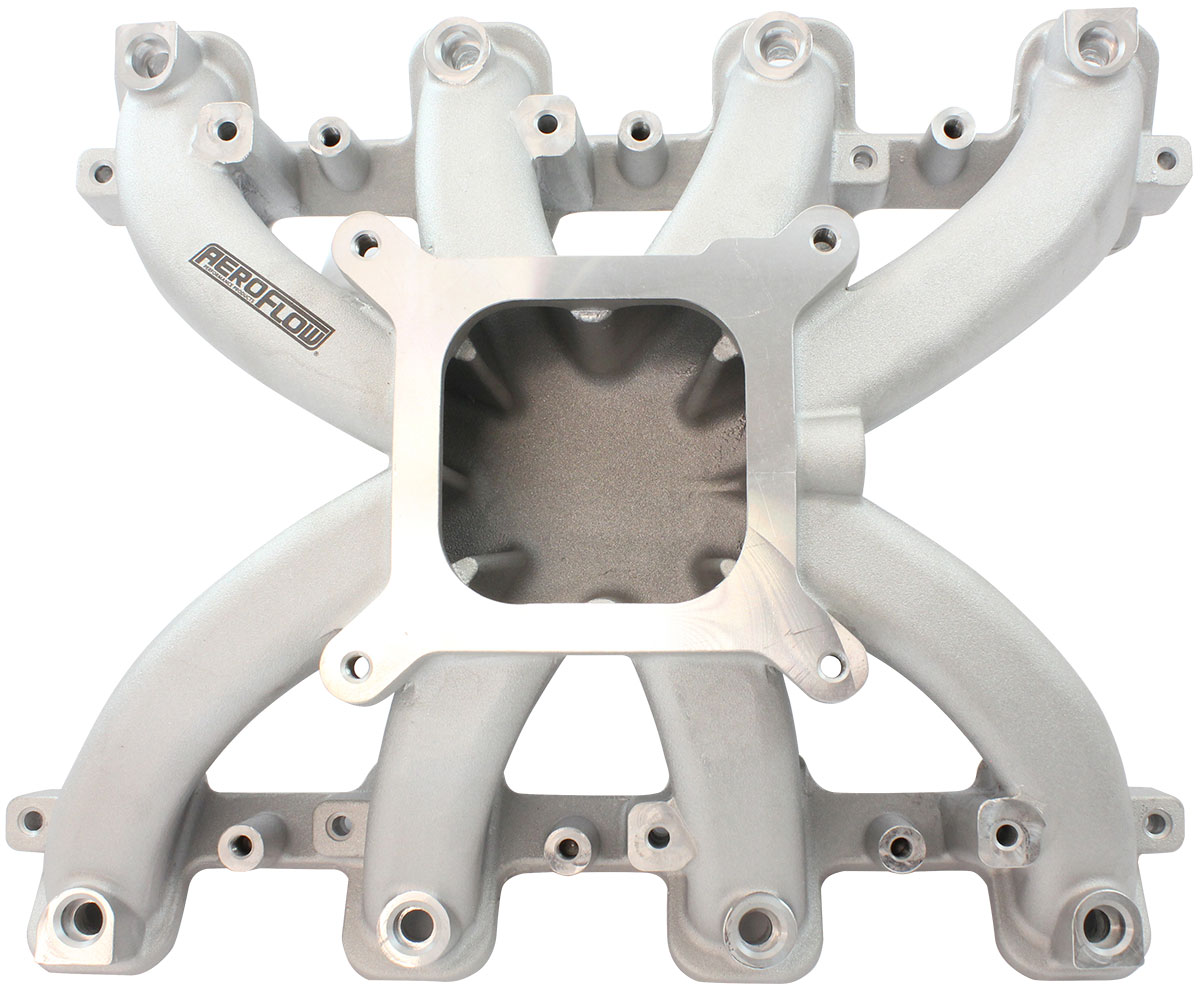

- Square bore carburettor pad (4150 Flange)
- Overall height (Carb pad to bottom of manifold) is 122mm (Ensure to Check Bonnet Clearance)
- Port Size: 1.15" x 2.50"
- Intake manifold gasket O-Ring (AF6233-5002).
- 5/16-18" carburettor studs (x4)
- 3/8" NPT port (x1)
- 6 x 5/16-18" Mounting Holes.
Intake Manifold Includes
- 8 x Intake Manifold O-Ring Gaskets (AF6233-5002)
- 4 x M6 x 1.00mm Hex Screws (80mm UHL)
- 6 x M6 x 1.00mm (50m UHL)
- 10 x M6 Flat Washers
- 1 x 3/8" NPT Steel Port Plug

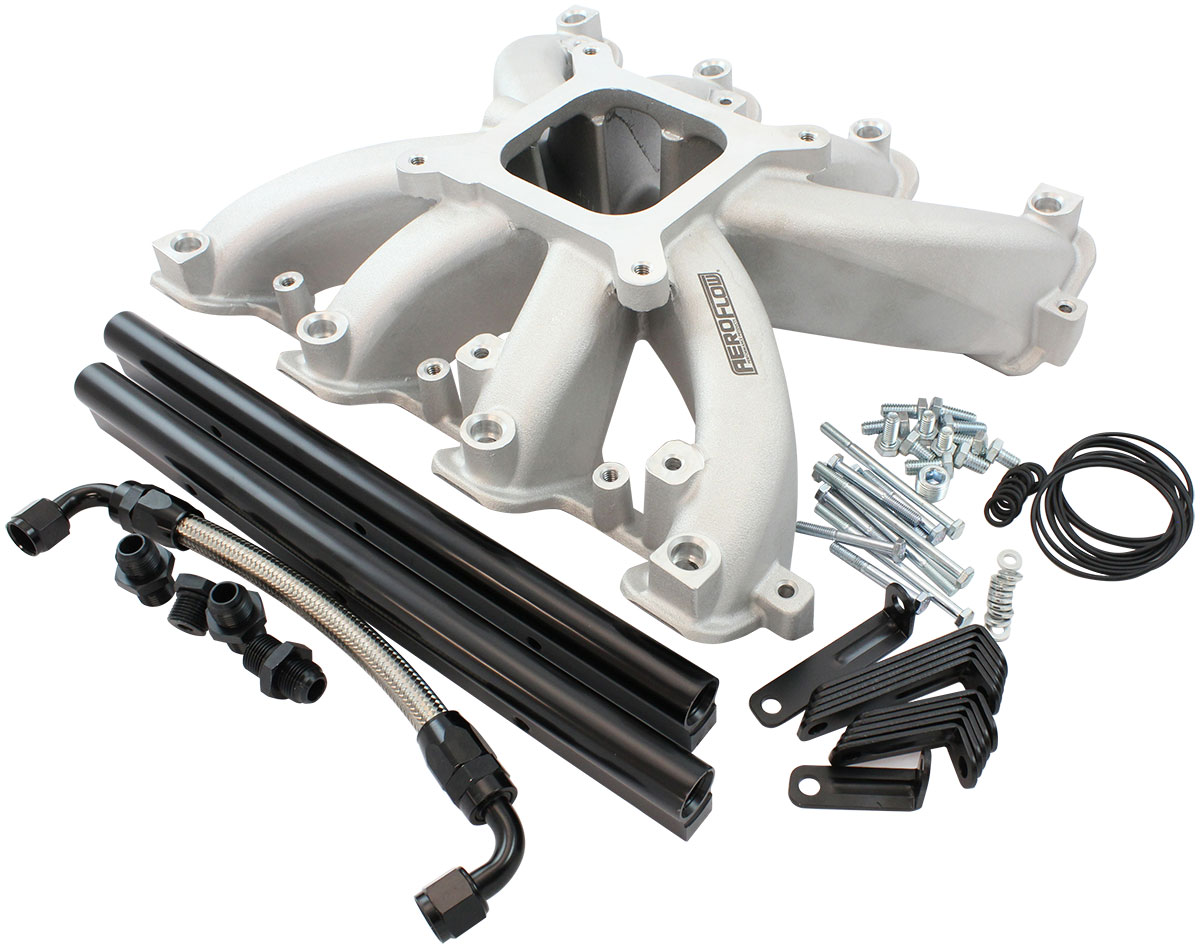

Fuel Rail Kit includes
- 2 x Two Fuel Rails (-8ORB)
- 1 x -8AN cross over 100 series braided line and two 90 degree non full flow taper fittings
- 3 x -8an to -8ORB fittings
- 1 x -8ORB hex port plug
- 6 x long mounting brackets
- 6 x short mounting brackets
- 6 x 5/16-18" hex screws (18.5mm UHL)
- 6 x 5/16-18" hex screws (12mm UHL)
- 4 x M6 nuts
- 8 x 14mm Fuel Injector O-Rings
Fits GM LS3 Rectangle Port Engines.
EFI Applications.
This is designed for GM LS Engines with EFI only. Use AF6040-6000 for NON-EFI applications.
This intake manifold does not work with factory OEM fuel rails and requires the use of Aeroflow Fuel Rail Kit included (AF6999-6000).
Requires the use of either 14mm short (33.60mm) fuel injectors or 3/4" length (48.65mm) fuel injectors (Sold Separately).
- Motortyp: LS
