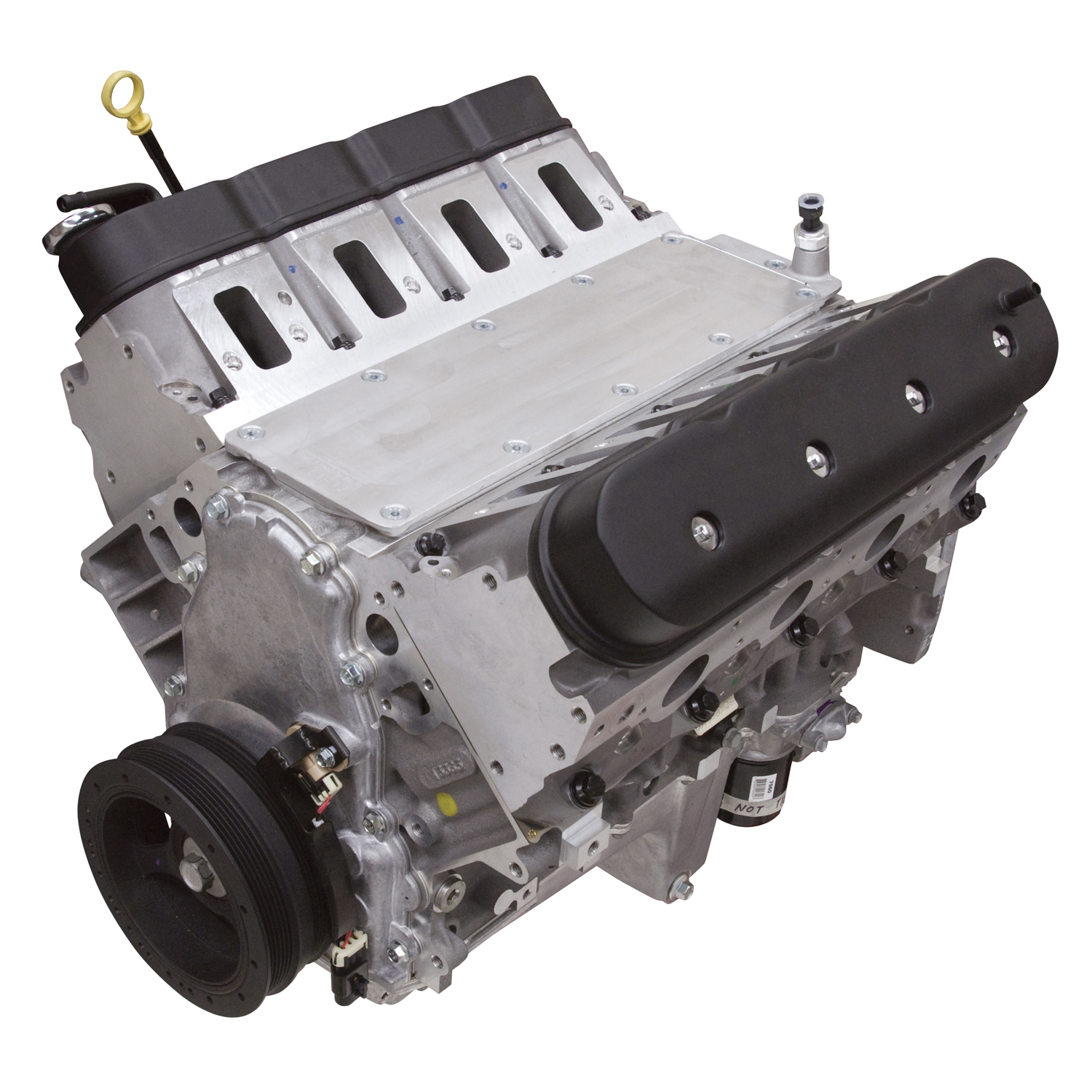

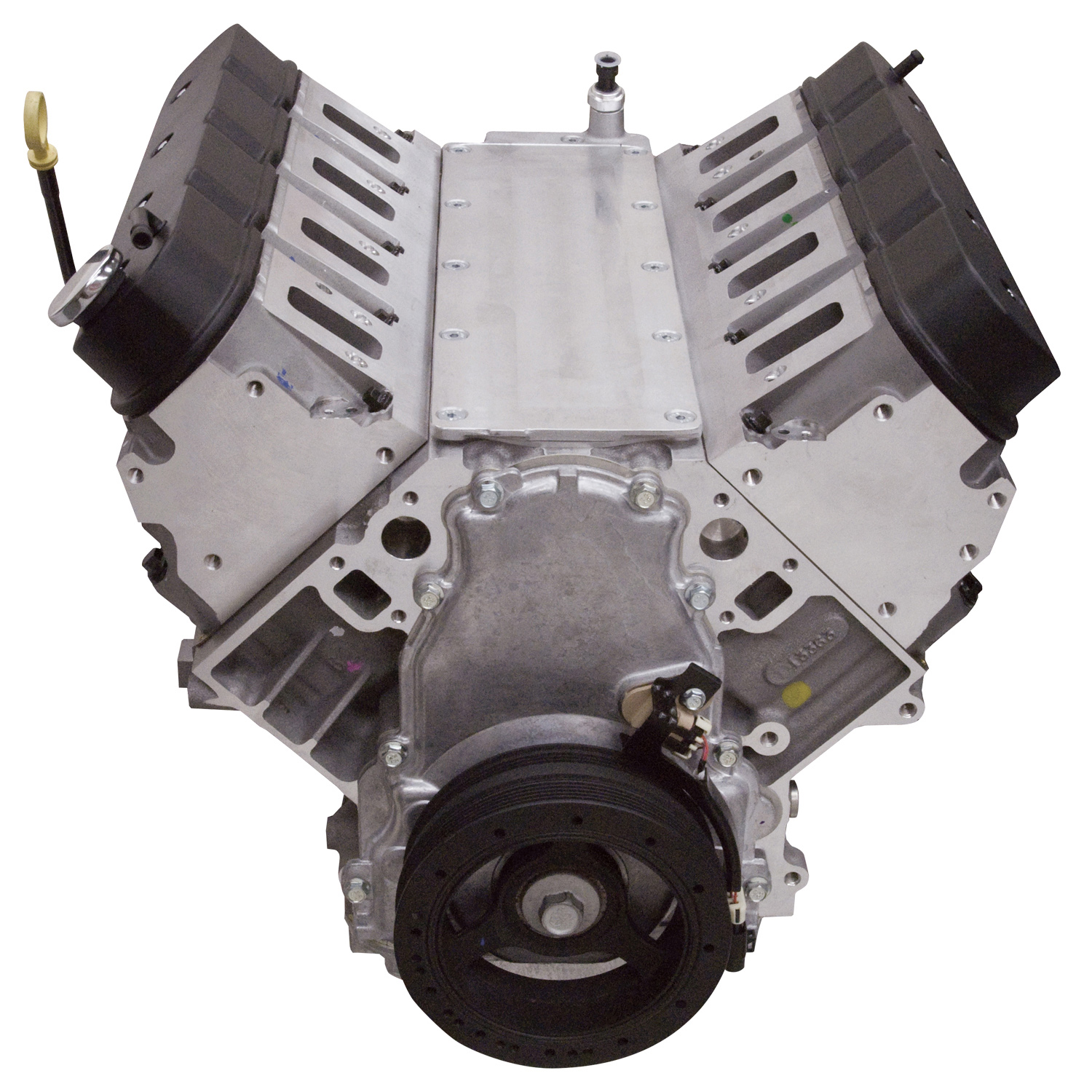

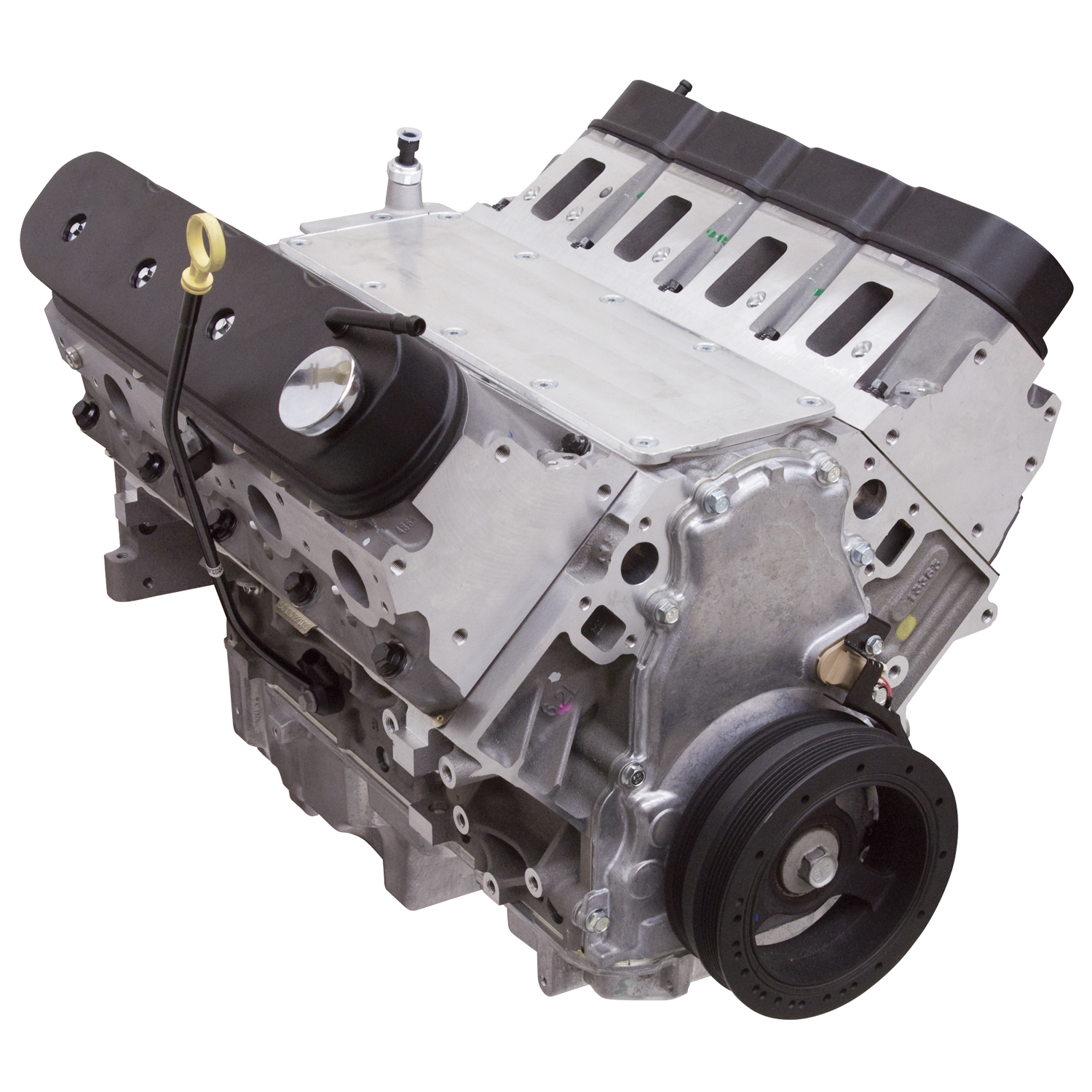

Long Block LS 416
Edelbrock : 46720
Artikelnr: ede46720
It features an aluminum LS3 block with a forged and balanced Manley crankshaft, forged Manley h-Beam connecting rods and Manley forged aluminum pistons to create a 416ci LS3 stroker with 4.065" bore and 4 stroke. Its compact design allows for a seamless swap into most platforms; eliminating the need for modifications to your engine bay or hood. This long-block is a great foundation for starting any high performance forced induction LS based build.Engine Specifications: Finish: Black powder coated Displacement: 416 c.i.d. Horsepower: Upwards of 720 HP when used with Edelbrock supercharger Torque: Upwards of 695 ft/lbs. when used with Edelbrock supercharger Compression: 9.5:1 Block: LS3 Aluminum Crankshaft: Forged 4340 Pistons: Forged Aluminum Rods: Forged H-Beam Camshaft: 215°/247°, .629/.656, 121 LSA Rocker Arms: LS3, 1.7 ratio Cylinder Heads: GM with Edelbrock Valve Springs #5768
- Air Cleaner Type: Not Included
- Calibration: No
- Camshaft Type: 215deg/247deg, .629/.656, 121 LSA
- Carburetor Choke Type: N/A
- Carburetor Type: Not Included
- Compression Ratio: 9.5:1
- Construction Type: Assembled
- Crankshaft Material: Forged Steel
- Cylinder Head Material: Aluminum
- Cylinder Head Type: GM LSA With Edelbrock Valve Springs
- Displacement: 416 CID
- Distributor Included: No
- Engine Block Material: Cast Iron
- Flywheel Included: No
- Grade Type: Performance
- Hardware Included: Yes
- Harmonic Balancer Included: Yes
- Horsepower: N/A
- Intake Manifold Type: Not Included
- Main Bearing Cap Bolt Quantity: 4-Bolt
- Manifold Material: N/A
- Oil Filter Included: Yes
- Oil Pan Included: Yes
- Piston Type: Forged Aluminum
- Plug Wire and Boot Included: No
- Quantity: Sold Individually
- Rear Main Seal Type: 1-Piece
- RGL: WARNING: This product can expose you to Chromium, Lead, and Zinc which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
- Rocker Arm Ratio: 1.7:1
- Rocker Arm Type: LS3
- Spark Plugs Included: No
- Throttle Body Included: No
- Timing Cover Included: Yes
- Torque: N/A
- Type: GM LS3 (Long Block Only)
- Universal Or Specific Fit: Specific Fit
- Valve Cover Included: Yes
- Valve Cover Material: Cast Aluminum
- Valve Cover Type: OEM, Black Powder Coated
- Water Pump Included: No
- Wire Harness Included: No
Edelbrocks Chevrolet och Ford motorer är ett smidigt sätt att få fart på bilen. Att renovera och trimma en originalmotor tar tid och kostar oftast mer pengar än dessa motorer. Finns som longblock till kompletta med förgasare eller insprutning.
